LED Sun Clock
Idea
I like sun clocks but the sun only seldom shows up in my office (in fact,
never). That's why I build up an electronic version with LED lights. The heart
is a ATmega8 controller with a quartz oscillator. Despite that I never soldered
such a circuit before, the result is acceptable.
Some steps are documented with a camera. Enjoy.
Circuit

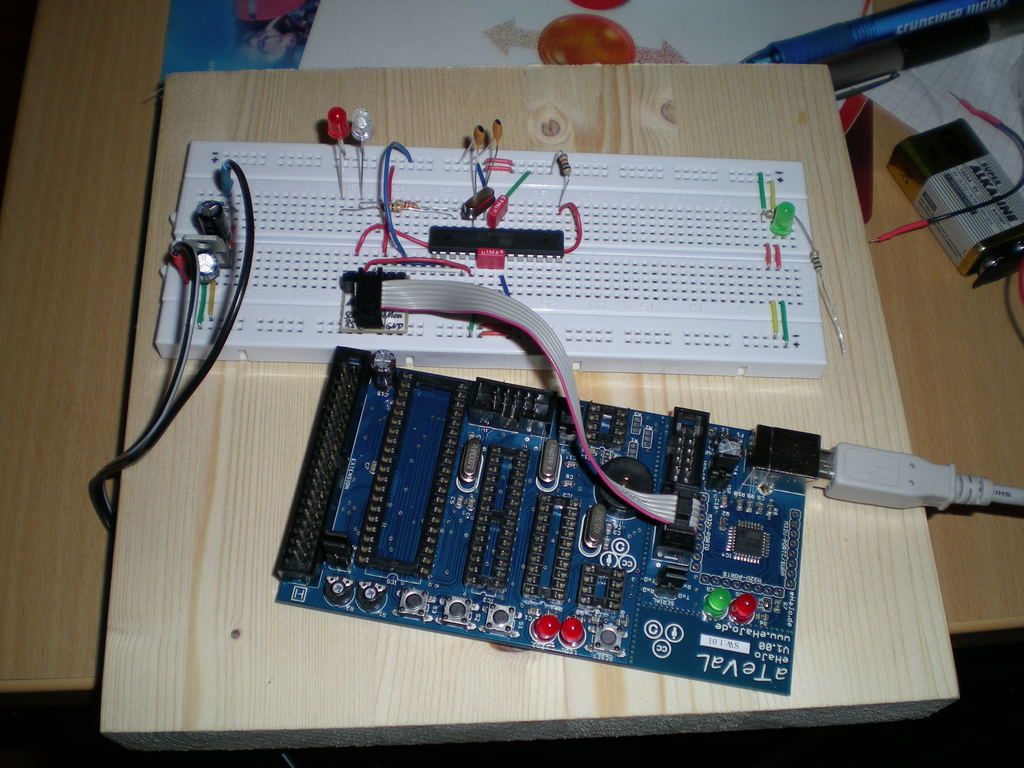

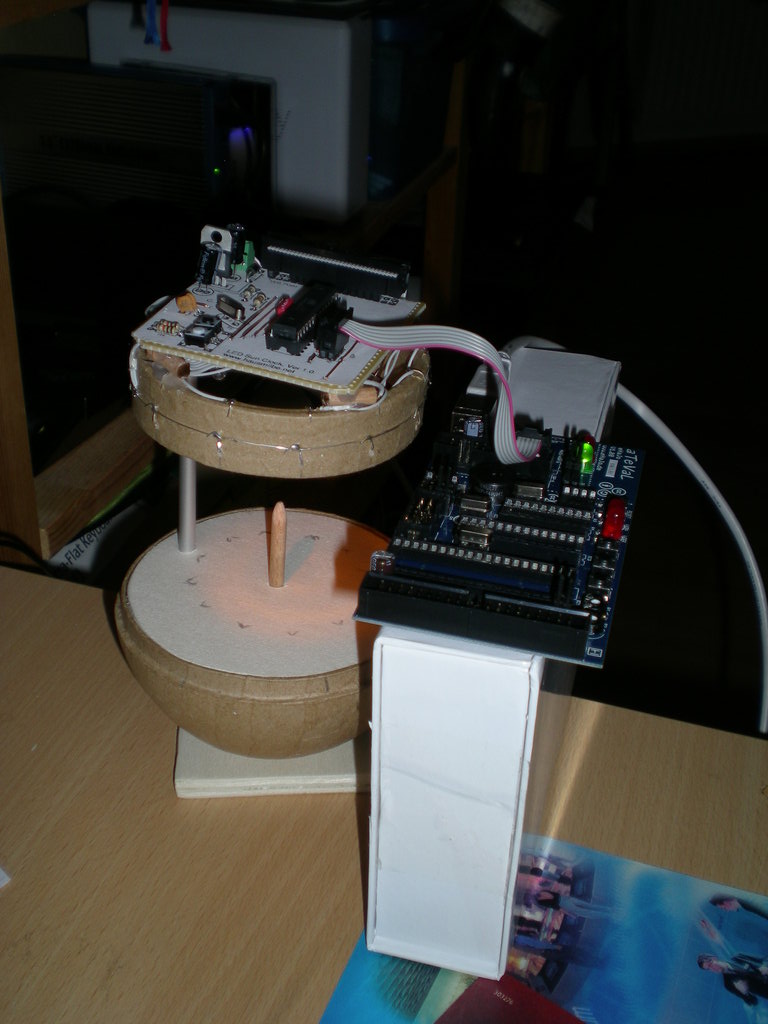

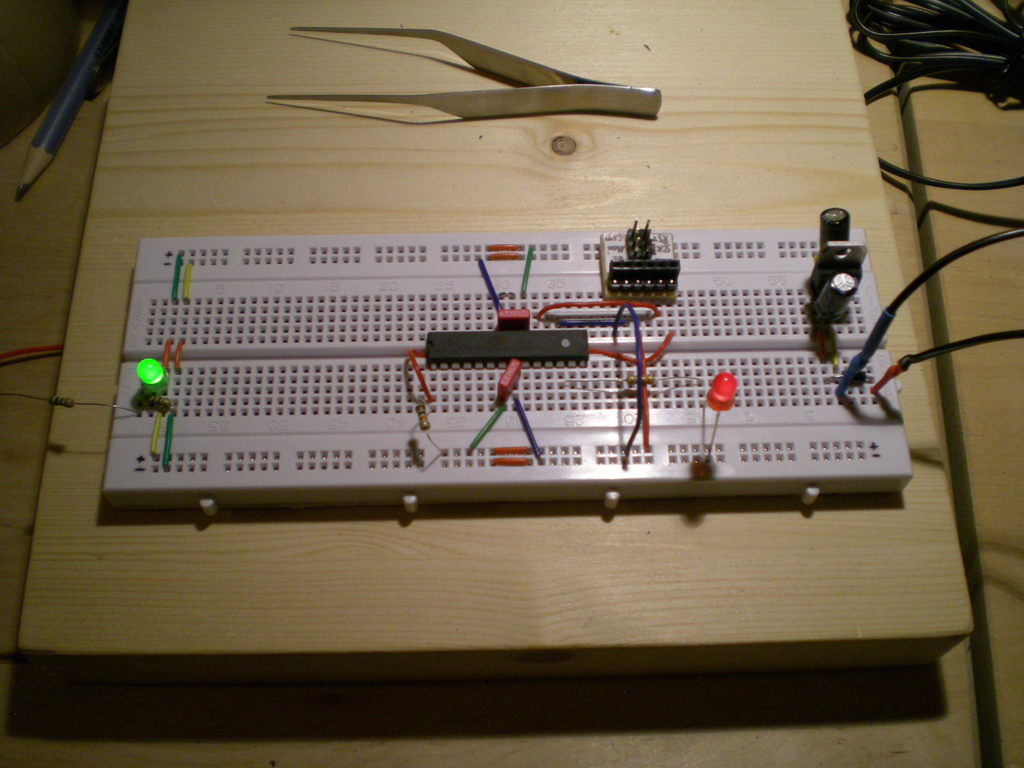

Simple setup and programming
The ISP is an ATeval board. Cheap but powerful and easy to use.

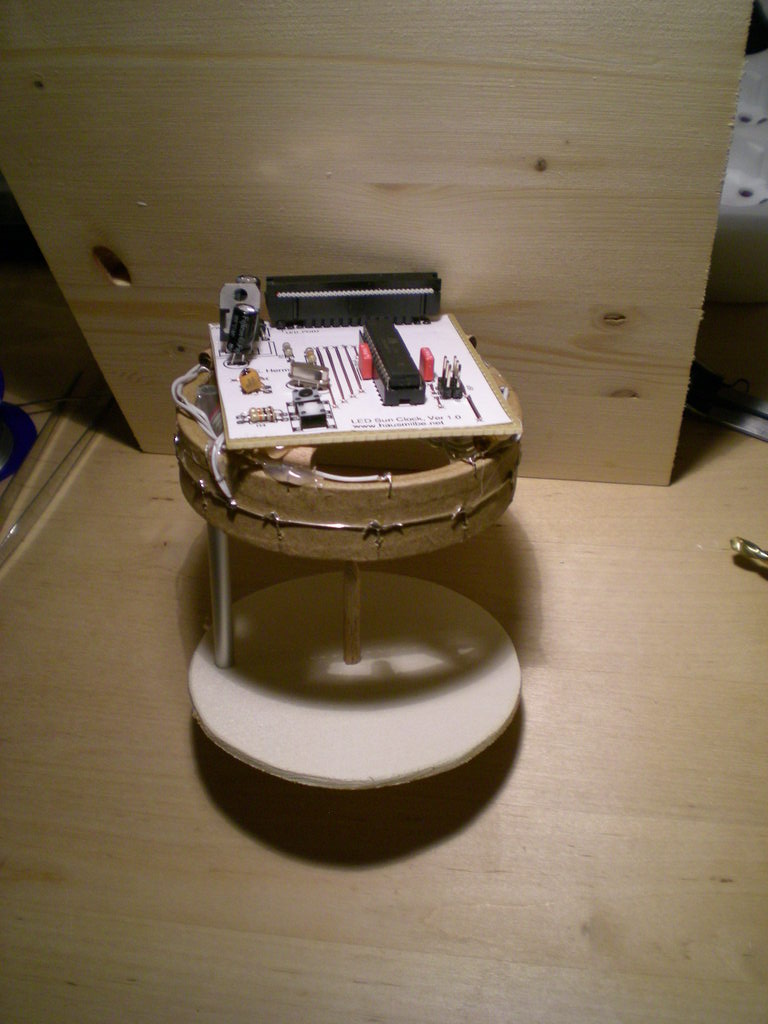

Attach the ring to the board

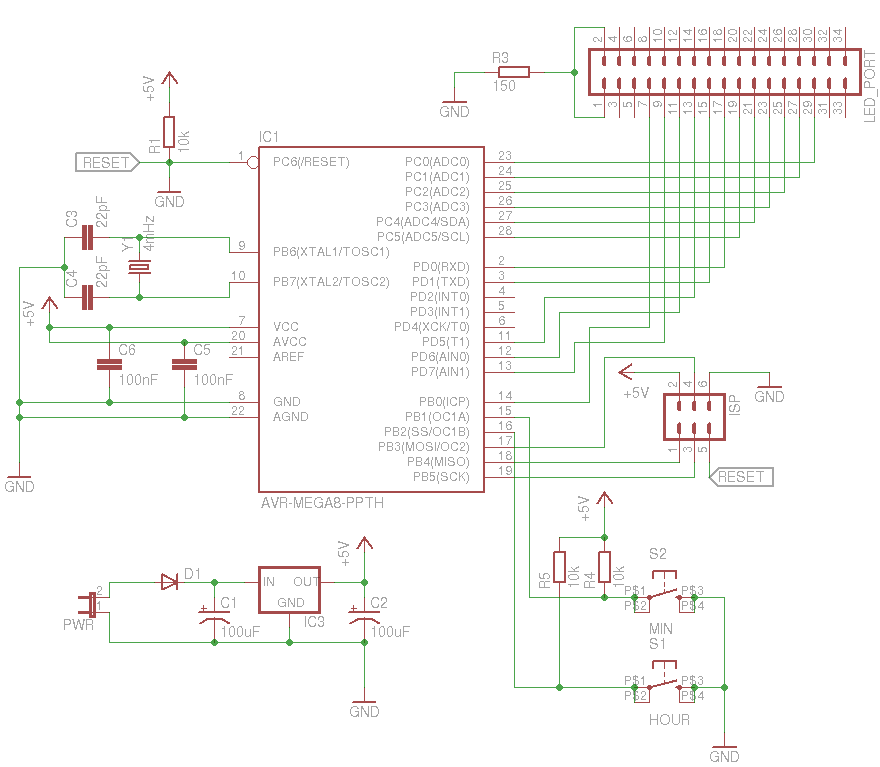

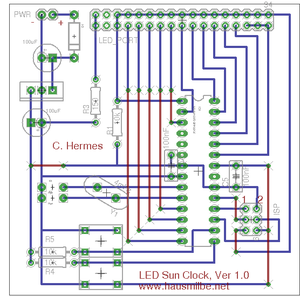

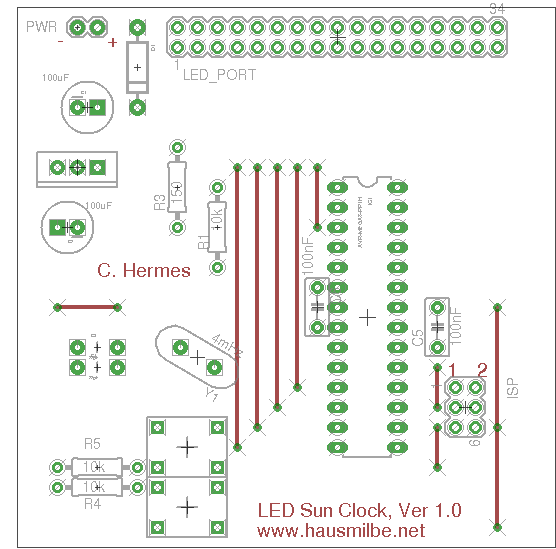

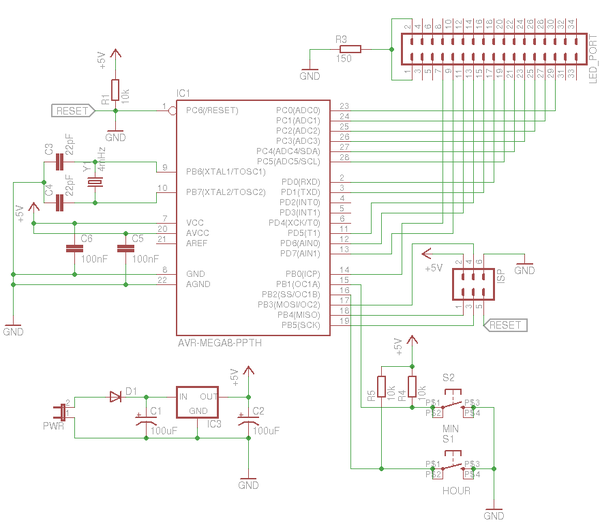

Schematic

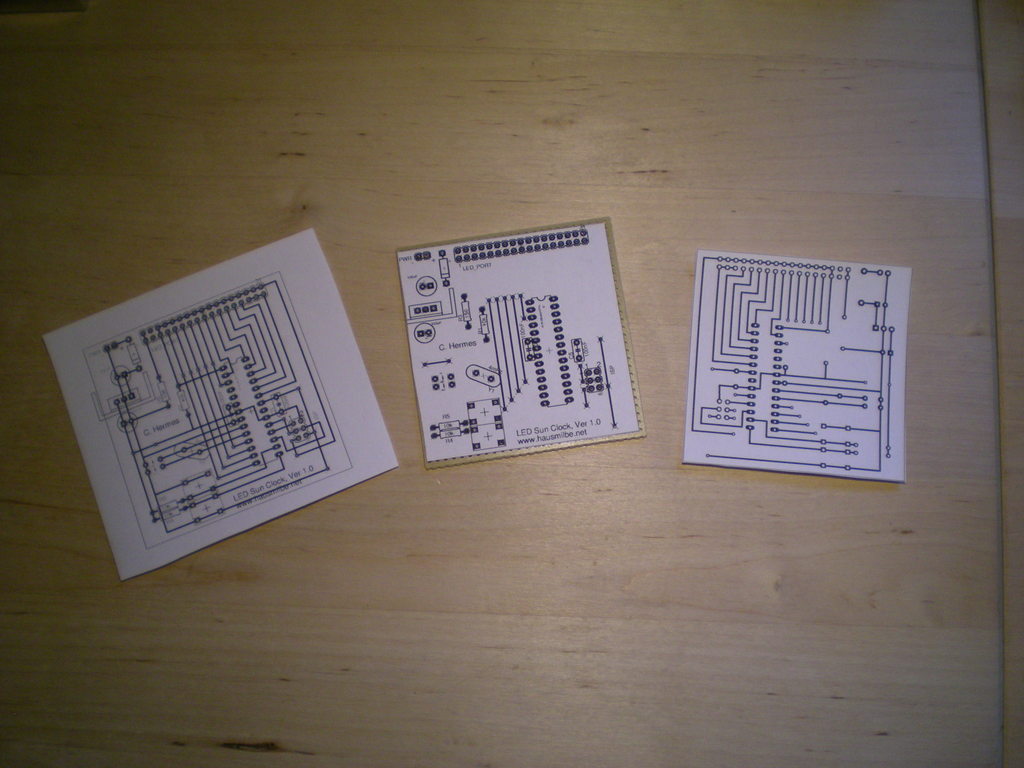

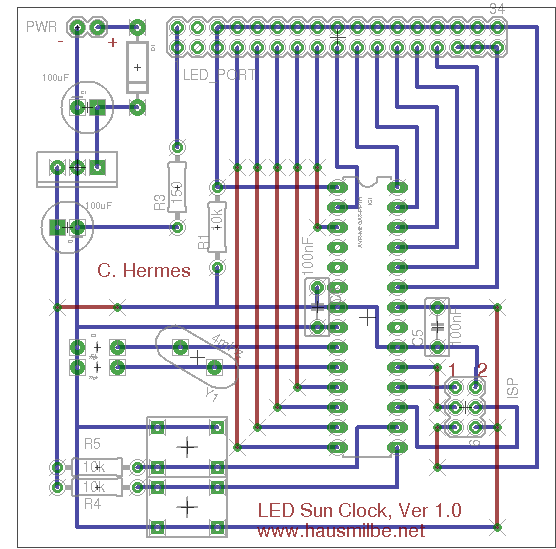

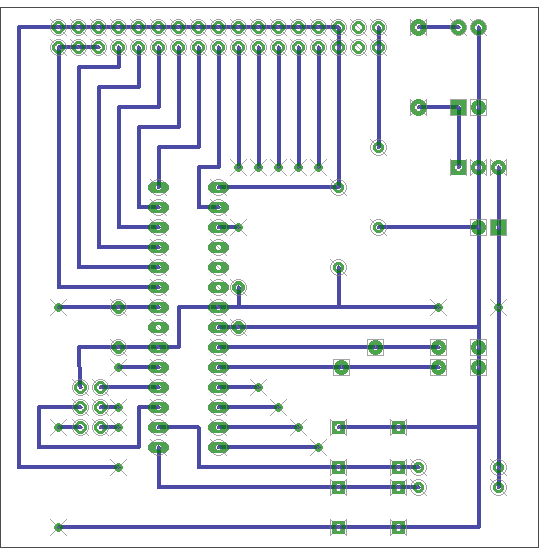

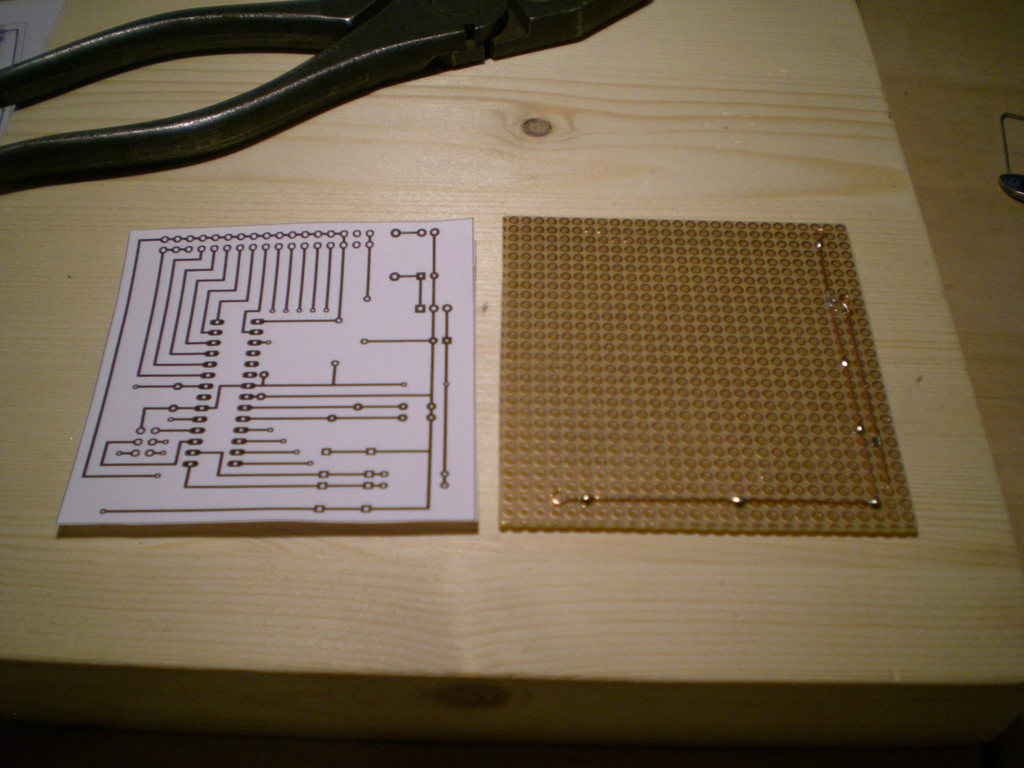

Circuit design and soldering

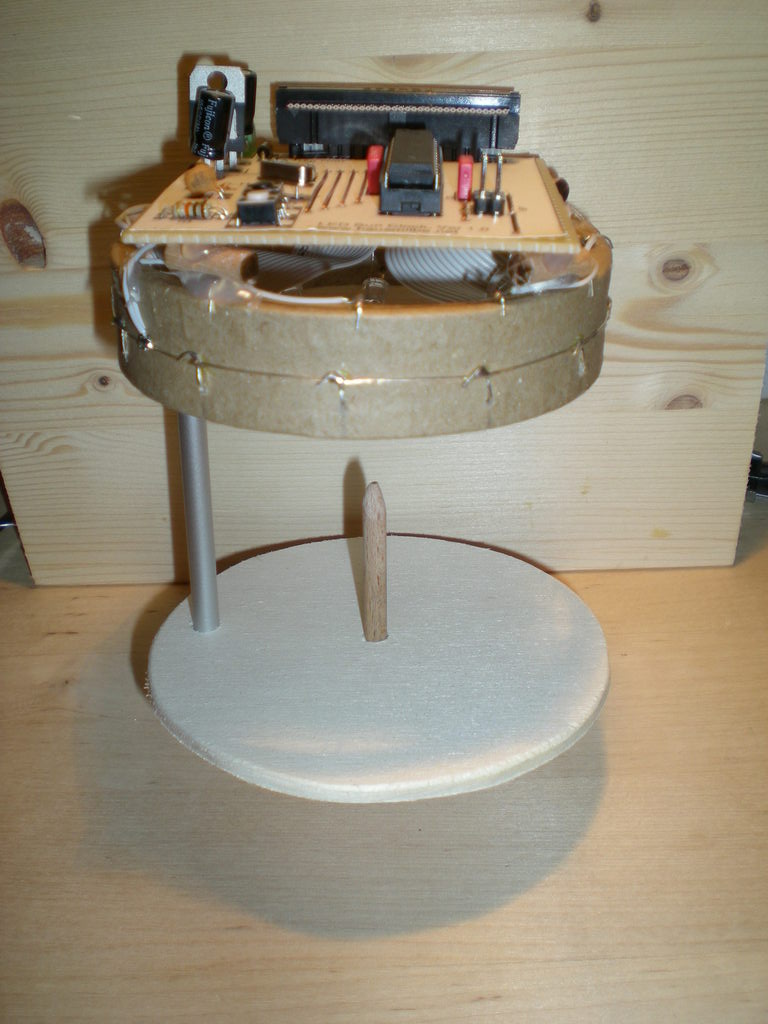

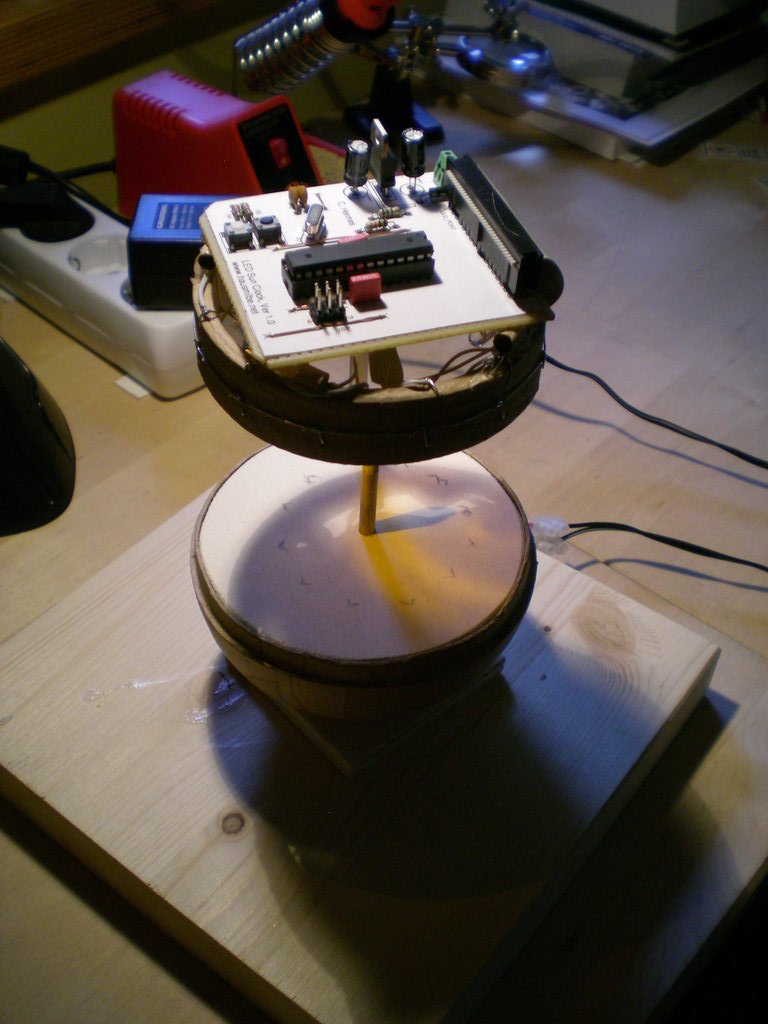

First installation

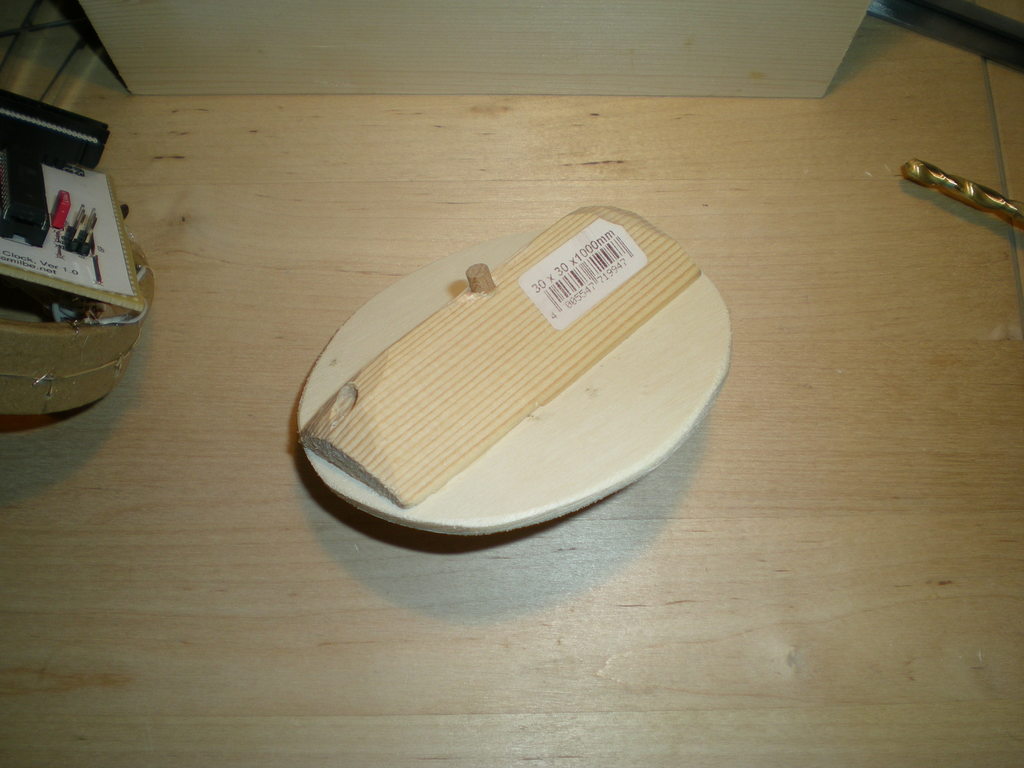

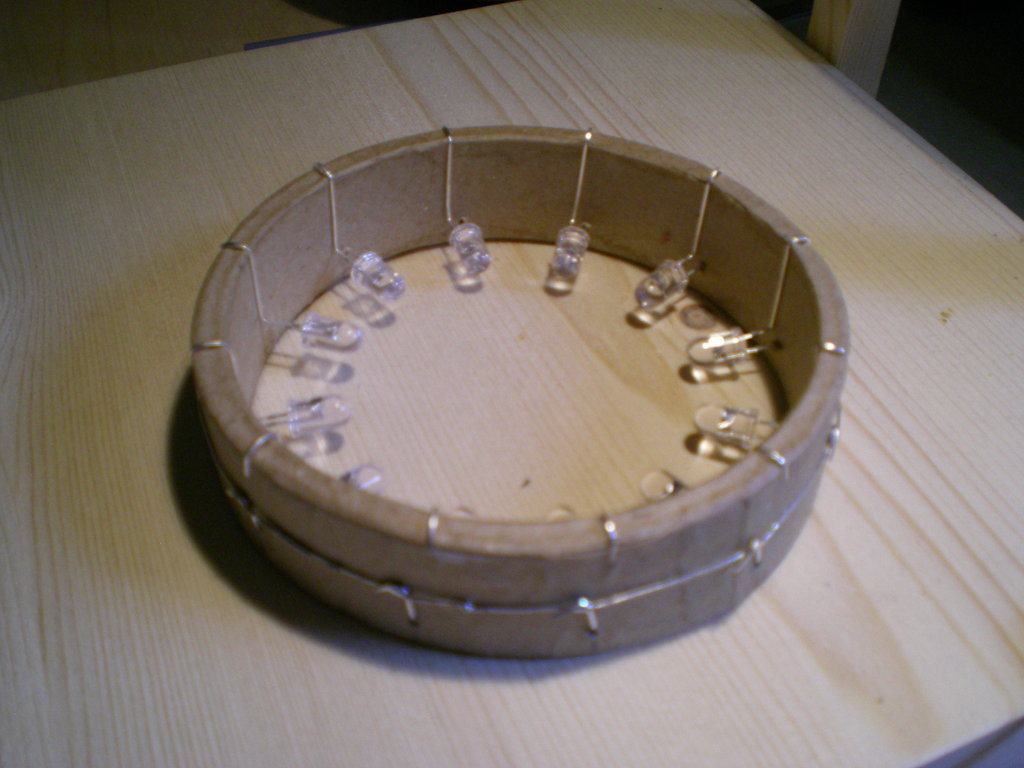

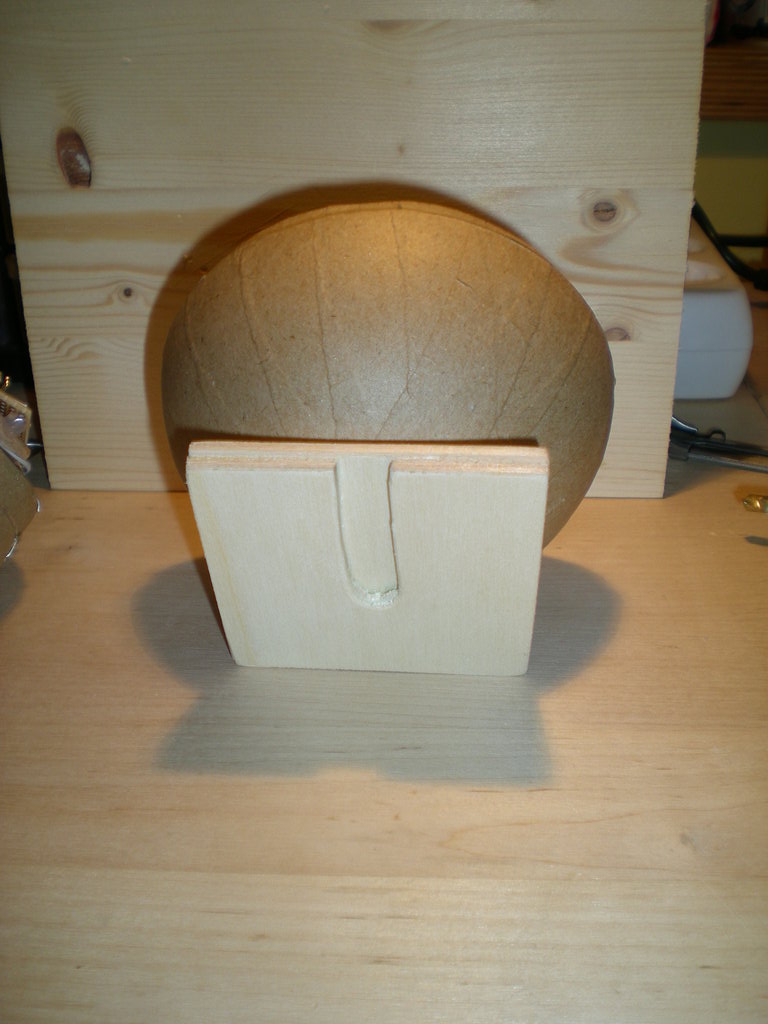

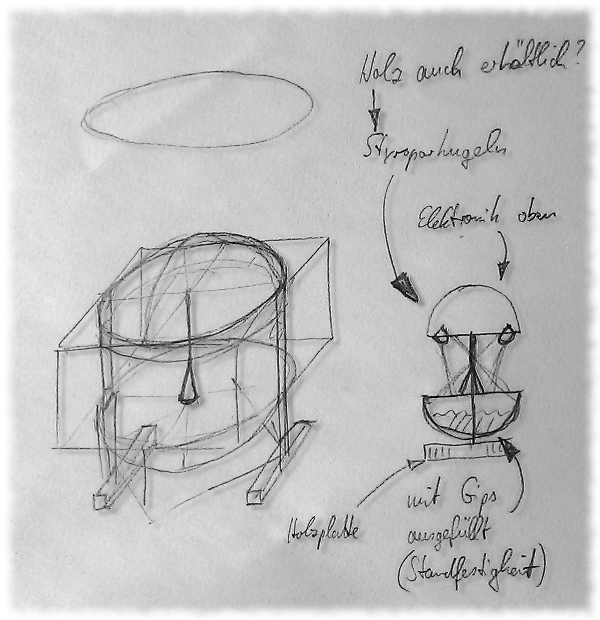

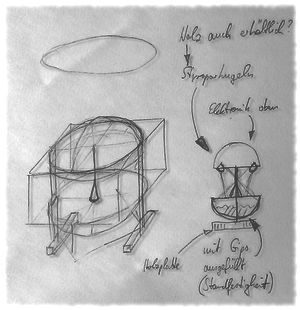

Sphere build

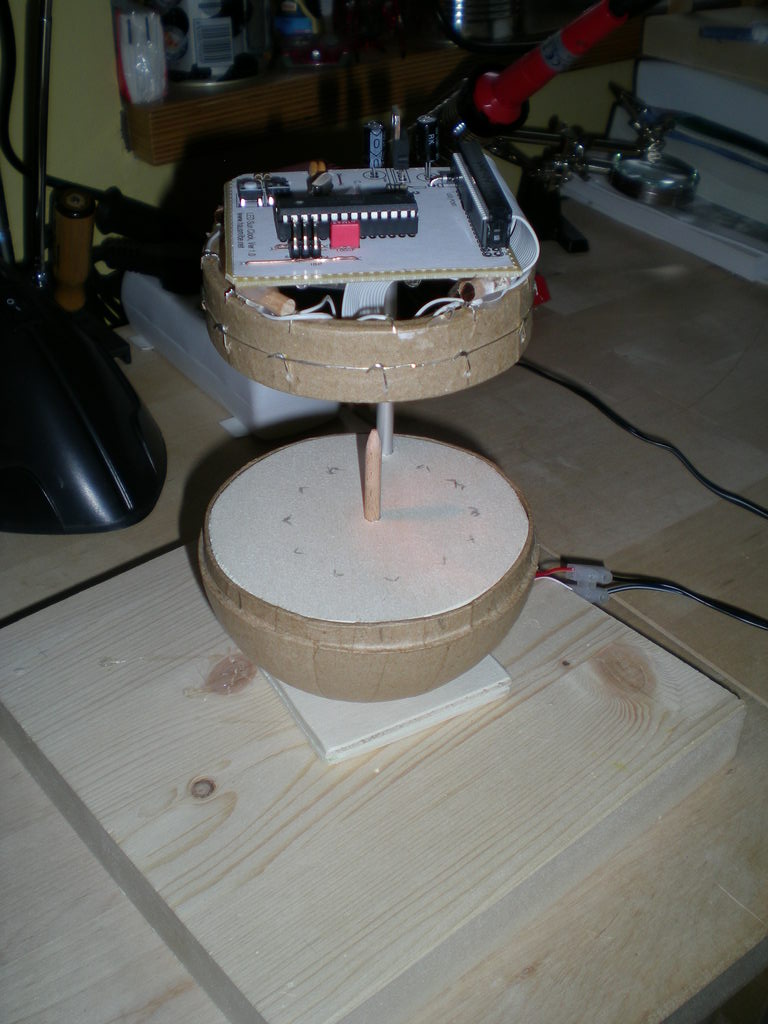

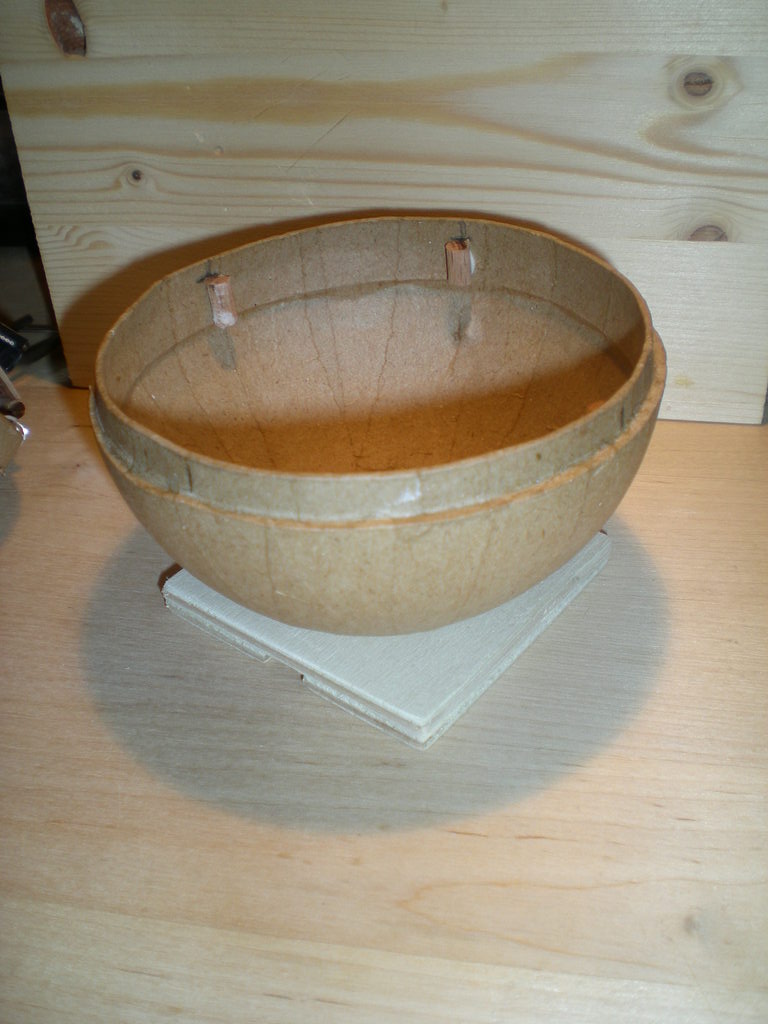

First construction

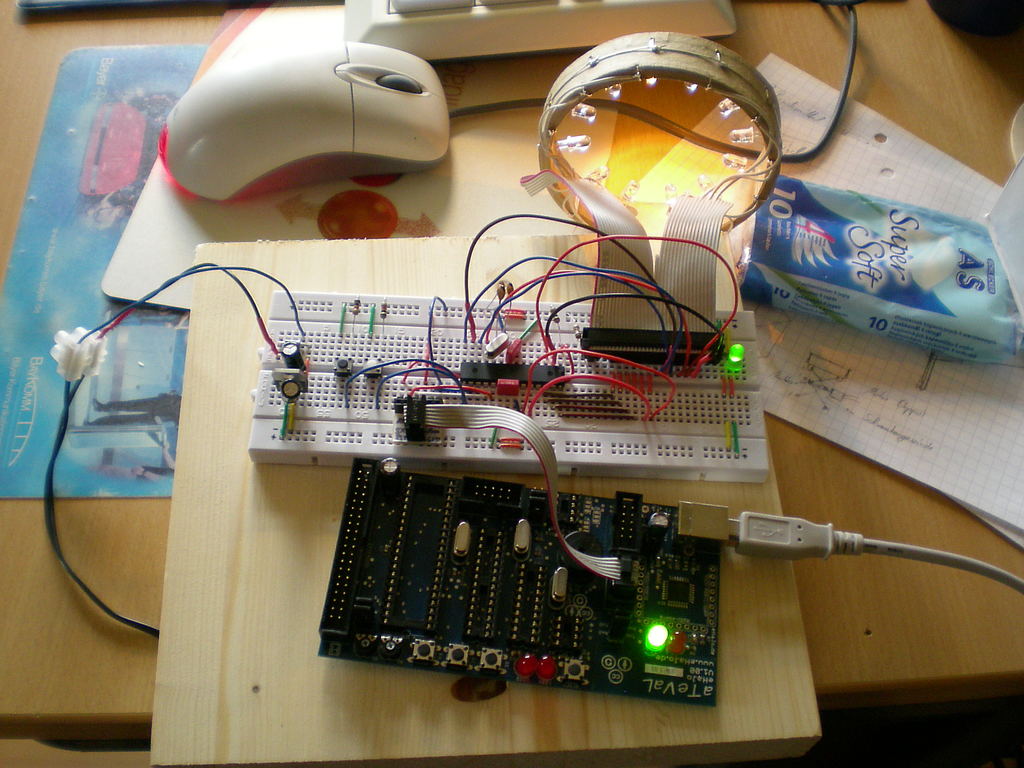

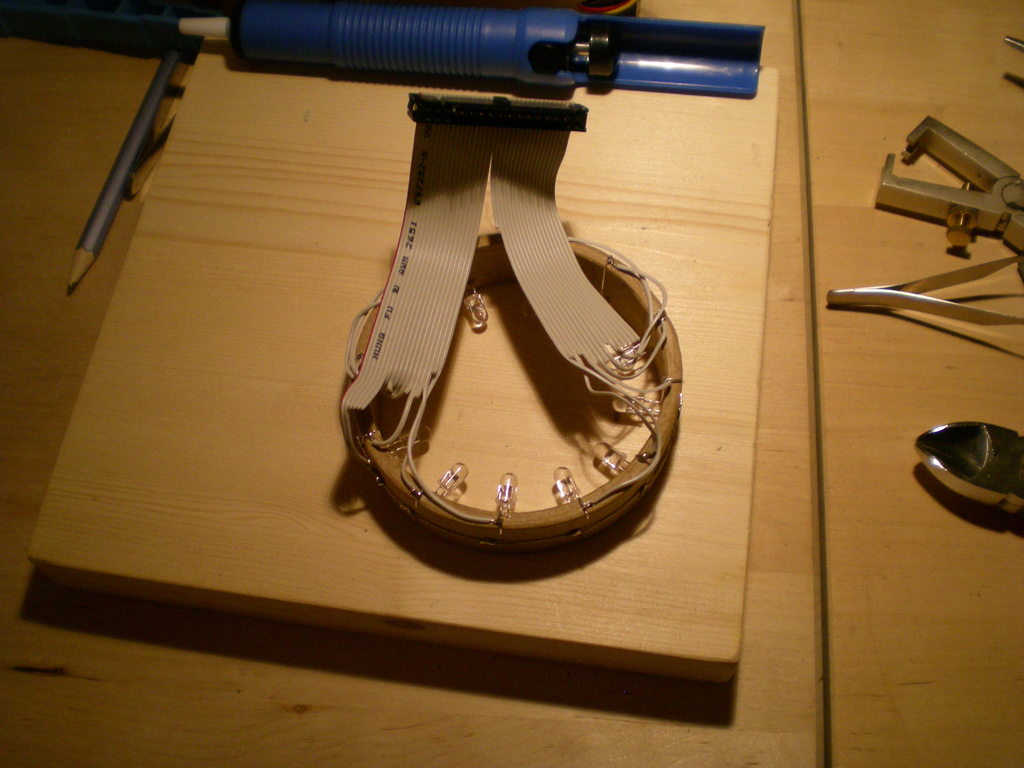

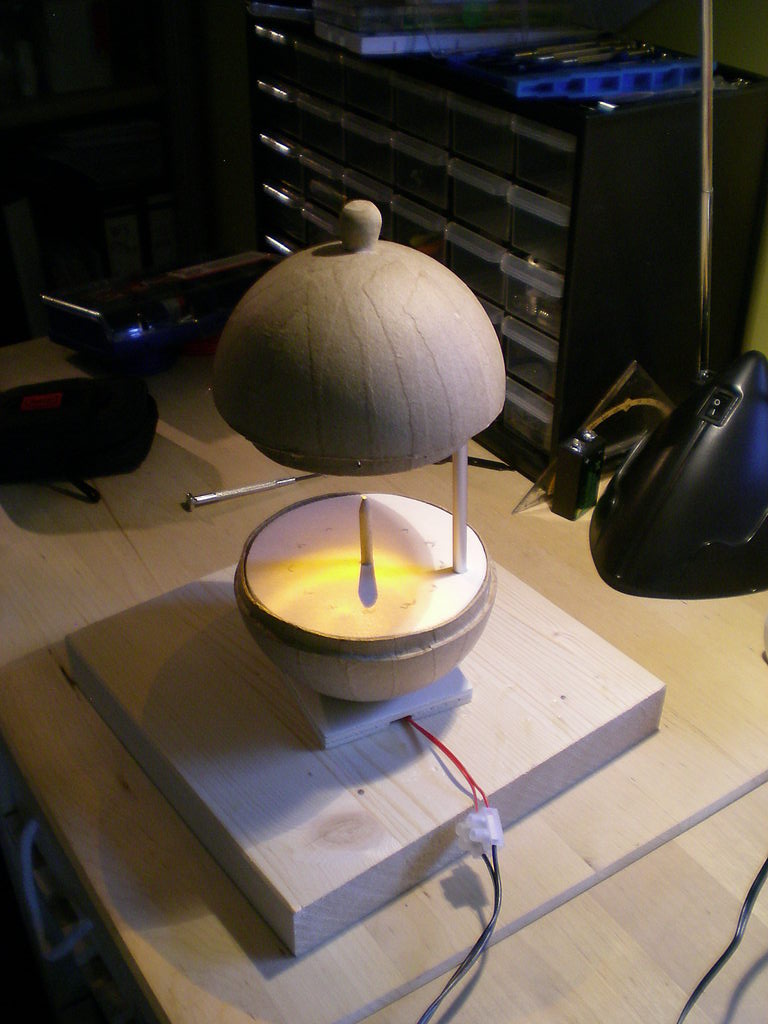

Testing the light
Final programming

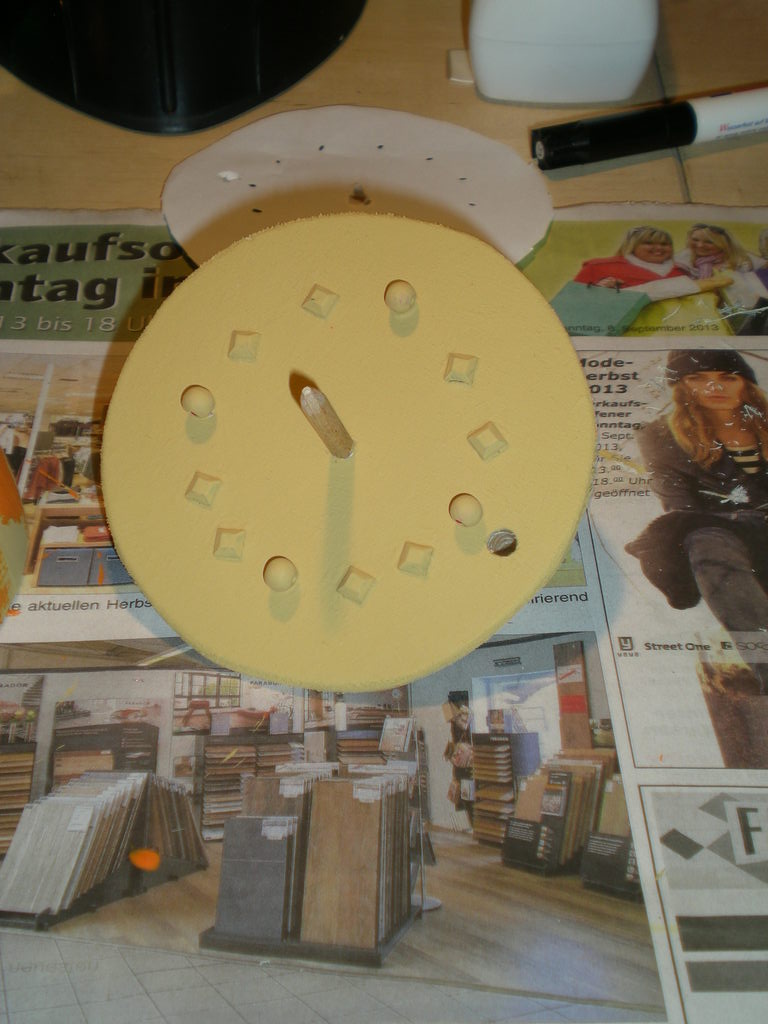

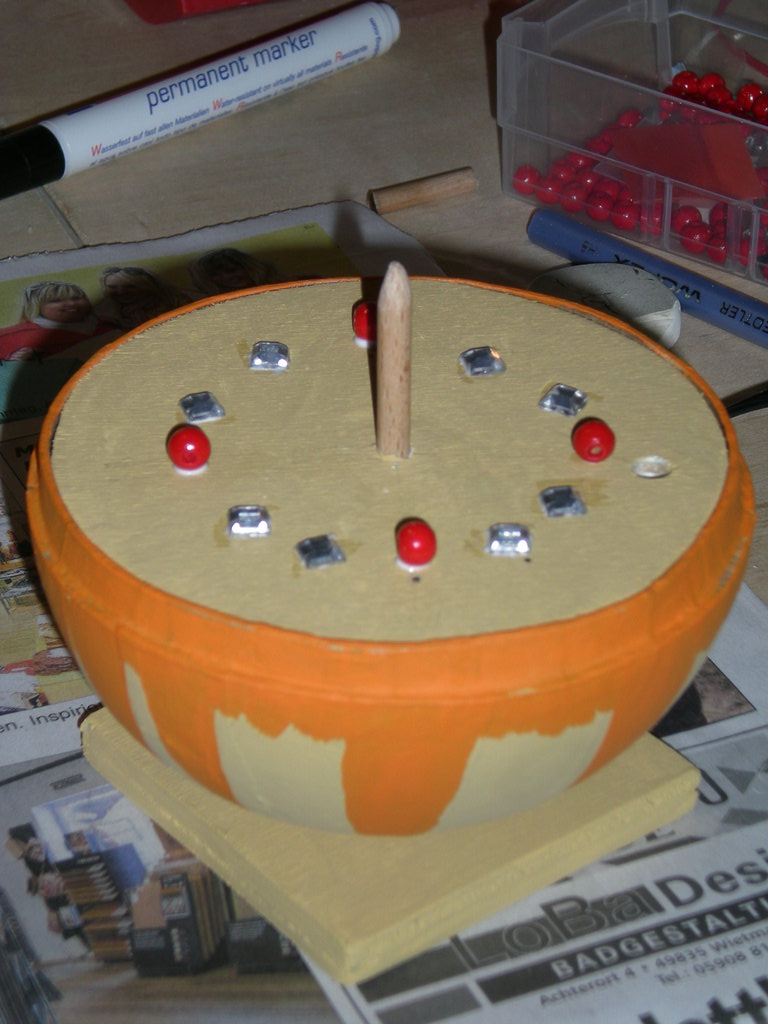

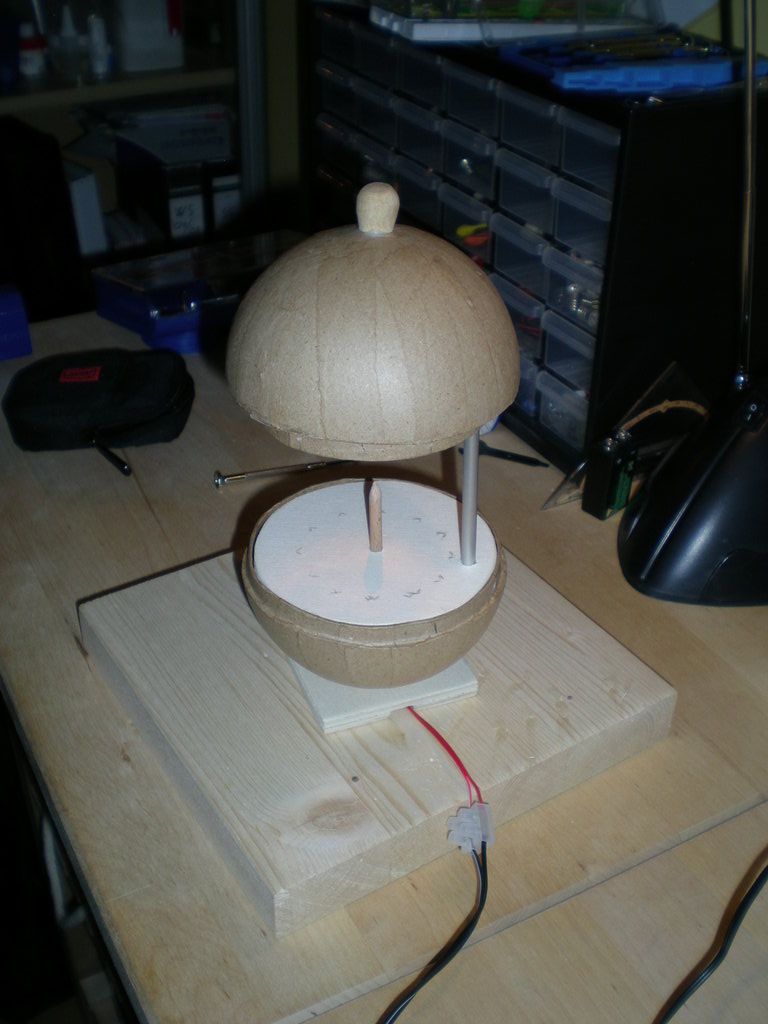

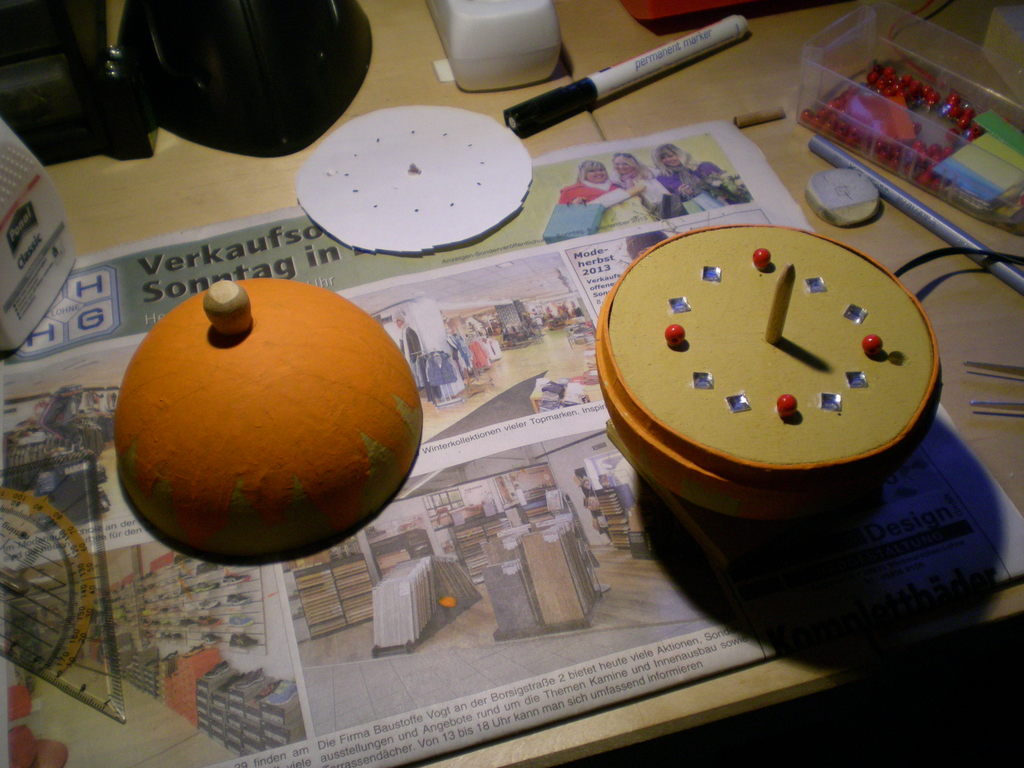

Mounting the (plastic) jewels and final painting

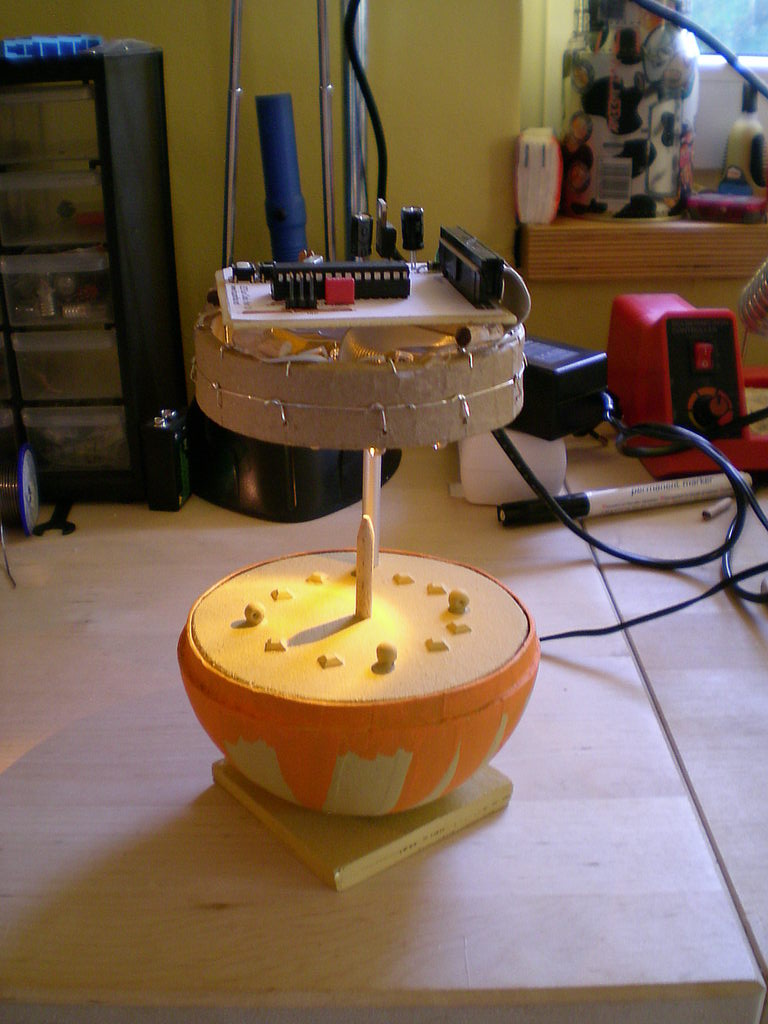

Final setup
The clock is still running.
Section 20130829_LED_Sunclock: Available Downloads
file | file size | comments |
---|
main.c | 6.42 KB | none |
Author: Christoph Hermes, published: Thu Sep 19 20:50:49 CEST 2013
